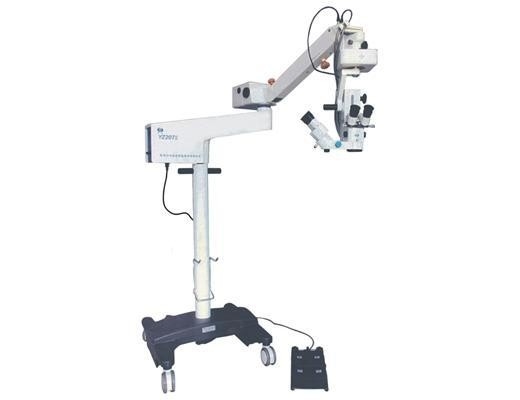

Name: Ophthalmic Surgical Operating Microscope 12.5×/18B Eyepiece Magnification With Assistant'S Microscope
Brand: 66 VISION
SKU: YZ20T9

Home Products Surgical Operating Microscope

Ophthalmic Surgical Operating Microscope 12.5×/18B Eyepiece Magnification With Assistant'S Microscope

Product Details:

Place of Origin:	China Jiangsu, Suzhou
Brand Name:	66 VISION
Certification:	ISO13485, FDA,CE
Model Number:	YZ20T9

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	carton with epe （5 cartons）

Contact Now

Detailed Product Description

Microscope:

Double Binocular

Lens:

Advanced Apochromatic Technology

Function:

Can Match HD Camera And Computer

High Light:

operating microscope ophthalmology

ophthalmic surgical microscope

Apochromatic Surgical Operating Microscope

YZ20T9 Operation Microscope

Characteristics:

♦Advanced apochromatic technology and unique optical balanced technology effectively improves the binocular visual fusions, strengthenes in third dimension and reduces surgeon’s tireness during operations.

♦Fine focusing knob is under the bottom of assistant binocular. The observation of the assistant’s microscope can be finely focused independently of the main microscope to avoid different observation from surgeons.

♦20°oblique illumination can also be used as slit illumination. Slit width is continuously adjustable.

♦For ophthalmic using

♦Specifications:

Eyepiece Magnification	12.5×
Diopter Adjustment	±7D
Magnification for Main Microscope	4×, 6×, 10×, 16×, 25×
Magnification for Assistant Microscope	6×, 10×, 14×
Focal Length of Objective Lens	f=200 mm
Diameter of View Field	58 mm, 38 mm, 23 mm, 14 mm, 9mm
Pupilary Adjustment	50 mm ～ 75 mm
Maximum Resolution	119 LP/mm
Working Distance	190 mm
Focusing Range for Assistant Microscope	≥30 mm
Light Source	12V/10W, medical cold reflection halogen lamp
Illumination Type	6°+0° coaxial illumination, 20° oblique illumination(can be used as silt illumination with slit width adjustable)

Coaxial Illuminance	≥50,000 Lx
Oblique Illuminance	≥45,000 Lx
Reaching Radius of Arm	1240 mm
Adjustable Vertical Range	850 mm~1350 mm
Fine Focusing Speed and Range	≤2 mm/s,≥50 mm
Speed for X/Y and Range	≤2 mm/s,50 mm×50 mm
Input Voltage	AC 220V/110V±10%, 50Hz/60Hz
Power Consumption	3300 VA
Fuse	AC 250V T4.0A, AC 125V T8.0A
Electrical Safety Standard	IEC 60601-1, Class I
Packing Volume	0.786 m3,5 cartons
Total Weight	213 kg
