| Place of Origin: | China |
| Brand Name: | 66 VISION |
| Certification: | CE FDA ISO13485 |
| Model Number: | YZ20P5 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| High Light: | operating microscope ophthalmology,ophthalmology surgical microscope |
||
|---|---|---|---|

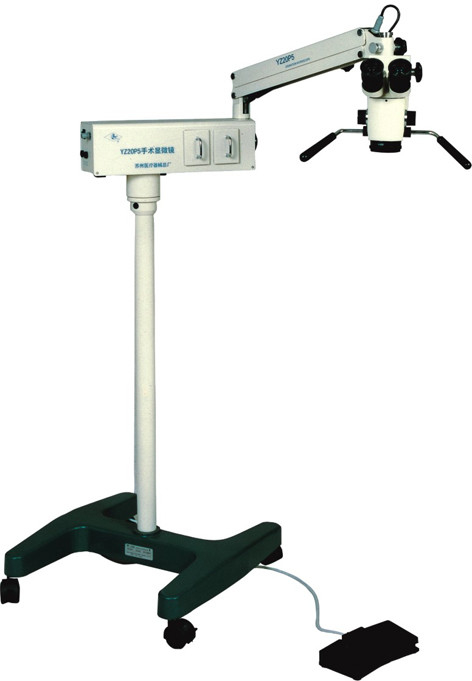

Characteristics:
The mirrors adopt multi-plated technology, the transmissivity enhanced, and the mildew prevented.
The microscope can focusing by foot-control, it has three steps magnification (or five steps) and has a good field depth and bino-combination. It can cater the requirements for cataract operation.
The microscope adopts the apochromatism technology, it can make the the focusing point of lights which have different wavelength behind the ocular lens approaching and the eyesight of the operator more clear.
The instrument weights only 41 kg. The microscope is small, light and convenient. It fits mobile medical treatment well.
The table type mircroscope can be choosed, and it makes the instrument more convenient. It also can be customized according to different operation requirements, such as ophthalmology operations etc.
Further option of objectives: F200/F250/F400.
Specifications:
| Eyepiece Magnification | 12.5× |
| Objective Focus | f=200 |
| Working Distance | 190mm |
| Magnification for Main Microscope | 5.3×,8×,12× steps |
| Diameter of Field | Φ37mm,Φ25mm,Φ16.7mm |
| Diopter Adjustment | ±7D |
| Pupil Distance | 50mm～80mm |
| Maximal Resolution | 100 LP/mm |
| Illumination Source | 12V/100W, medical cold reflection halogen lamp |
| Illumination Type | 6°+ 0°coaxial cold light source illumination |
| Coaxial Illumination | ≥30000lx |
| Reaching Radius of Arm | 870mm |
| Adjustable Vertical Range | 700mm～1100mm |
| Fine Focusing Range | 30mm |
| Input Voltage | AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz |
| Power | 120VA |
| Fuse | AC250V T1.25A ,AC125V T2.5A |
