| Place of Origin: | China |
| Brand Name: | 66 VISION |
| Certification: | CE FDA |
| Model Number: | YZ5G |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 700*570*540mm |
| High Light: | ophthalmology slit lamp,video slit lamp |
||
|---|---|---|---|

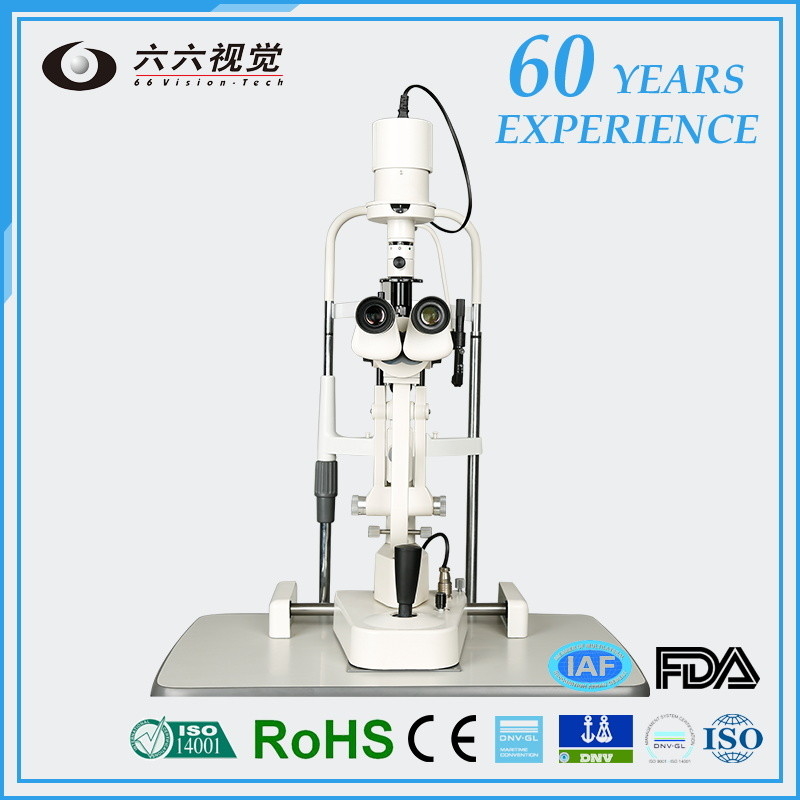

Slit Lamp Microscope
Features:
● Professional digital camera is more sensitive to the changes of patient’s eyes, even the smallest changes.
● 8~14mm aperture provides broader and clearer field of view.
● Imported Schott optics from Germany reduces optical distortion, increases clarity and depth of focus.
● All the Optical lenses are moistureproof, mildewproof and anti-reflected treated.
● Osram bulb provides the low heating, high brightness and even lighting.
● Five-step drum magnification for eyepiece. Sclera vein could be observed under the 40x magnification
● Excellent optical performances and long span usage.
● Anti-ultraviolet radiation filter ensures patient’s safety during examination.
● All the joints can be connected by accessories with international standards.
Specifications:
| Microscope Type | Galilean stereoscopic microscope |
| Objective Magnification | Five-step Drum Magnification |
| Eye Piece | 12.5x |
|
Magnifications (Field of View) |
6x(φ33 mm), 10x( φ22.5 mm ), 16x( φ14 mm ),25x( φ8.8 mm ), 40x( φ5.5 mm ) |
| Pupil Distance | 55 mm～75 mm |
| Diopter Adjustment | -5D~+3D |
| Slit Width | 0 mm～14 mm adjustable( slit is round when the slit width is 14 mm) |
| Slit Height | 1 mm～14 mm adjustable |
| Slit Angle | 0°～180° adjustable |
| Slit Inclination | 5° 10° 15° 20° |
| Diameter of Light Spot | φ14mm,φ10mm,φ5mm,φ2mm,φ1mm,φ0.2mm |
| Filter | Heat Absorption, Grey, Red Free, Cobalt Blue |
Contact Person: sales
