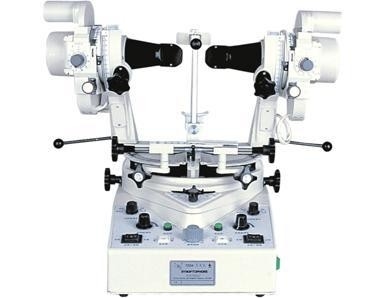

YZ23B Synoptophore

Product Details:

Brand Name:	66 VISION

Payment & Shipping Terms:

Price:	Negotiable

Contact Now

Detailed Product Description

High Light:

ophthalmic equipment synoptophore

surgical synoptophore

Characteristics:

With functions of diagnosis, treatment, simultaneous viewing, syncretic viewing, solid viewing, and afterimage.
Equipped with a pair of Haidingers Brush and 20 pairs of pictures with different angle.
Advanced semi-transparent and semi- reflecting viewfinder is convenient for the surgeon to observe.
Advanced LED luminophor has even lllumination, low heat and long service life.
Pictures designed by new technology are anti-broken and has long service life.
Manual or automatical coruscation with accurate frequency are at surgeon’s option.

Optional pictures for quantitative measuring of solid acutance （40~1000）

Specifications:

Magnification	1.65×
Diameter of Field	≥56mm
Red light	=640mm coruscation system
Left and right tubes rotate around erect axis	converging 50°, diverging 40°
Left and right tubes rotate around horizontal axis	±30°
Pictures of left and right can be moved up and down according optical axis	±10
Pictures of left and right rotate around optical axis	±20°
Adjustable range of interpupillary distance:	45~75mm
Darkroom illumination	LED bulb with symmetry design
