| Place of Origin: | China |
| Brand Name: | 66 VISION |
| Certification: | CE FDA |
| Model Number: | YZ23B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Supply Ability: | 1000 Sets |
| High Light: | amblyoscope synoptophore,ophthalmic equipment synoptophore |
||
|---|---|---|---|

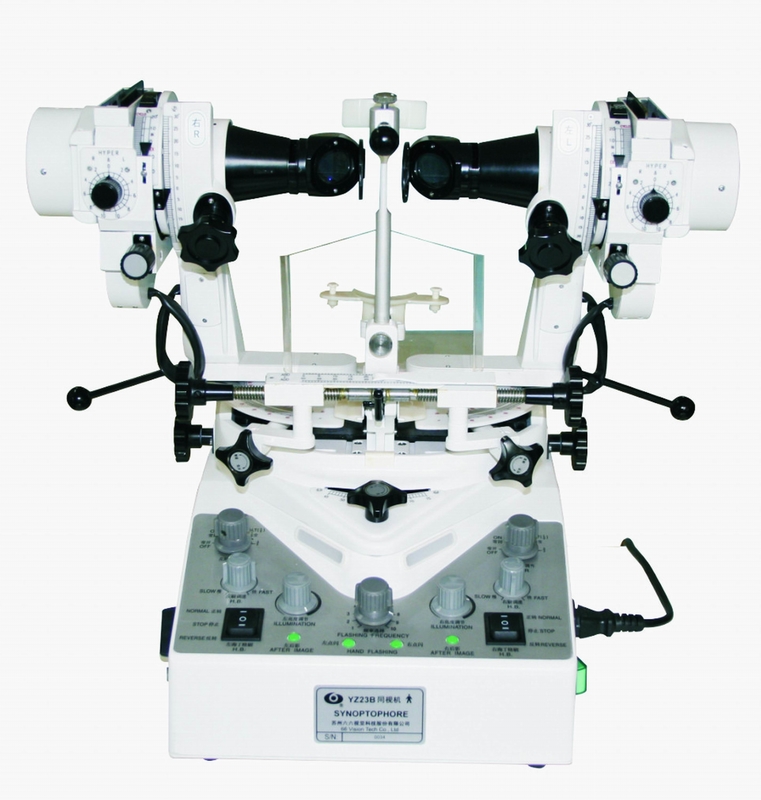

YZ23B Synoptophore is an ophthalmic instrument designed with optical, mechanical and electrical technology, which can be applied in inspecting and treating various binocular functions, such as strabismus, amblyopia, diplopia, heterophoria, etc.
Features:
● With functions of diagnosis, treatment, simultaneous viewing, syncretic viewing, solid viewing and aftreimage.
● Equipped with a pair of Haidingers Brush and 20 pairs of pictures with different angle.
● Advanced semi-transparent and semi-reflecting viewfinder is convenient for the user to observer.
● Advanced LED luminophor has even illumination, low heat and long service life.
● Pictures designed by new technology are anti-broken and has long service life.
● Manual or automatic coruscation with accurate frequency is at user's option.
Specifications:
| Magnification | 1.65X |
| Diameter of Field | ≥56mm |
| Red Light | λ = 640nm coruscation system |
| Left and right tubes rotate around vertical axis | converging 50°, diverging 40° |
| Left and right tubes rotate around horizontal axis | ±30° |
| Pictures of left and right can be moved up and down according optical axis | ±10Δ |
| Pictures of left and right rotate around optical axis | ±20° |
| Adjustable range of interpupillary distance | 45~75mm |
| Darkroom Illumination | LED bulb with symmetry design |
| Adjustable Haidingers Brush | 50~100 round/minute |
| Coruscation Form | manual or automatic |
| Automatic Coruscation Frequency | 10-Steps, 30~300 times/minute |
| Range of Automatic Coruscation ( each cycle) | 1/4 on 3/4 off, 1/2 on 1/2 off, 3/4 on 1/4 off |
| Type of Automatic Coruscation |
Left and right can be turned on or off at the same time Left and right can be turned on or off alternatively One on and the other off One on or off while the other can be turned on or off |
