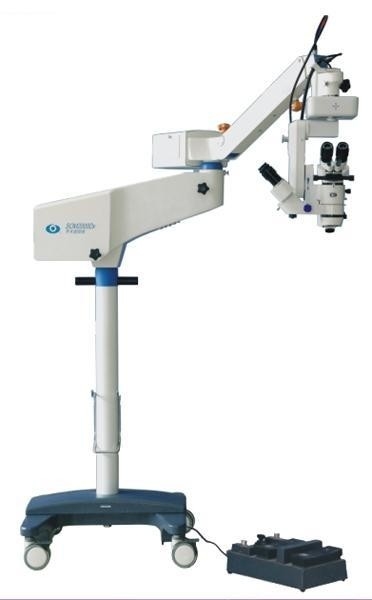

Portable Surgical Operating Microscope Using Xenon Light Source

Portable Surgical Operating Microscope Using Xenon Light Source

  • Portable Surgical Operating Microscope Using Xenon Light Source
Portable Surgical Operating Microscope Using Xenon Light Source
Product Details:
Brand Name: 66 VISION
Payment & Shipping Terms:
Price: Negotiable
Contact Now
Detailed Product Description
High Light:

ophthalmic surgical microscope

,

ophthalmology surgical microscope

SOM2000Dx Operation Microscope





Characteristics:

It provides an amazingly clear, fine observations by using Xenon light source.

-2 °+6° coxial illumination greatly improves the intension and range of red light reflex.

UV-proof and heat absorption reduces the harm to intraocular tissues and make the patient feel more comfortable.

Germany imported Schott optics ensure the surgeons a bright, balanced and fine observation.

Apochromatic technology used in the optical design, ensures coaxial light focus and makes a clearer field of view.

Lock device under the microscope arm prevents accident from happening.

Fine focusing knob is under the bottom of assistant binocular. The obervation of the assistant’s microscope can be finely focused independently from the main microscope, to avoid the different observations from the surgeon.

Specifications:

Eyepiece Magnification

12.5×/18B

Objective Lens

f=200

Working Distance

170mm

Magnification for Main Microscope

4.6×-27×, motorized and manual control,

Continuous Magnification

Magnification for Assistant Microscope

6×,10×,16×

Diameter of Field

46mm ~8.5mm

Diopter Adjustment

±7D
