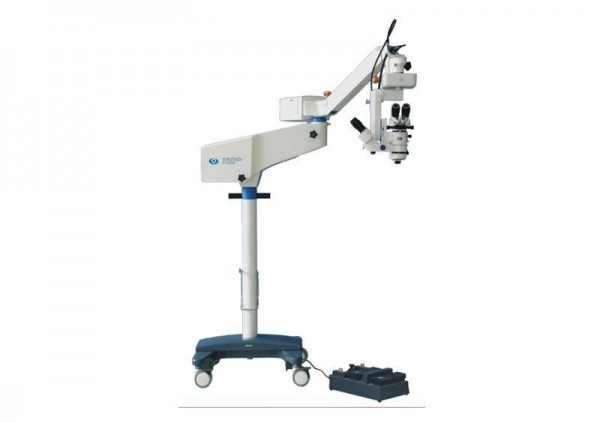

| Highlight: | Complicated Operation Ophthalmic Surgical Microscope,100W ophthalmology surgical microscope,Complicated Operations Ophthalmology Surgical Microscope |
||
|---|---|---|---|
Features
| It provides an amazingly clear, fine observations by using Xenon light source. | |
| -2°~+6° coaxial illumination greatly improves the intensity and range of red light reflex. | |
| UV-proof and heat absorption reduces the harm to intraocular tissues and make the patient feel more comfortable. | |
| Schott optics ensure the surgeons a bright, balanced and fine observation. | |
| Apochromatic technology is used in the optical design to ensures coaxial light focus and makes a clearer field of view. | |
| Lock device under the microscope arm prevents accident from happening. | |
|
Fine focusing knob is under the bottom of assistant binocular. The observation of the assistant’s microscope can be finely focused independently from the main microscope to avoid the different observations from the surgeon. |
Specifications
|
Eyepiece Magnification |
12.5×, 18× |
|
Focal Length of Objective Lens |
f=200 |
|
Working Distance |
170 mm |
|
Magnification for Main Microscope |
Continuous variable from 4.6× ~ 27×, motorized and manual control |
|
Magnification for Assistant Microscope |
6×, 10×, 16× |
|
Diameter of Field |
46 mm ~8.5 mm |
|
Diopter Adjustment |
±7D |
|
Pupil Distance |
50 mm75 mm (main microscope is 45 mm80 mm) |
|
Maximal Resolution |
126 LP/mm |
|
Focusing Range for Assistant Microscope |
≥30 mm |
|
Light Source |
120V/100W medical Xenon lamp and 12V/100W halogen lamp. Dual-source manual switched |
|
Illumination Type |
6°+2°Coaxial illumination, 26°oblique illumination |
|
Filters |
