| Place of Origin: | China, Jiangsu, Suzhou |
| Brand Name: | 66 VISION |
| Certification: | CE, FDA, ISO13485 |
| Model Number: | YZ20P5 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |

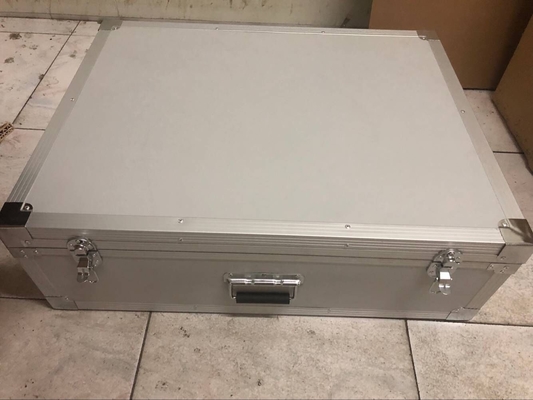

| Packaging Details: | carton or aluminum alloy box with EPE |
| Supply Ability: | 20 pcs per month |
| Ophthalmic Surgery Microscope: | Binocular, Small, Light, Convenient | Illumination: | 6° Coaxial Illumination |
|---|---|---|---|
| Lens: | Multi-layer Coating Technology | Bulb: | 12V/100W, Medical Cold Reflection Halogen Lamp |
| High Light: | Cold Light Surgical Operating Microscope,Magnification Portable Operating Microscope,Match Table Portable Operating Microscop |
||
Ophthalmic Surgery Microscope Magnification For 3 Steps Or 5 Steps Light Body Can Match Table Or Aluminum Alloy Boxes

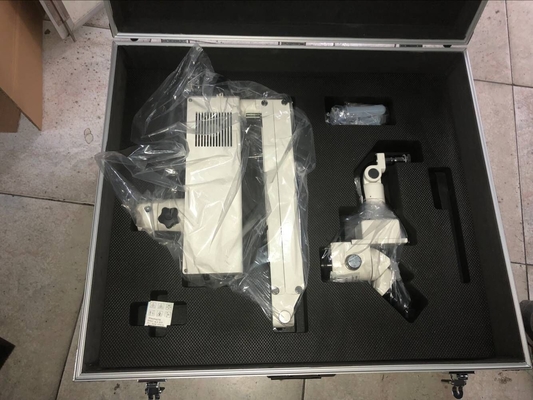

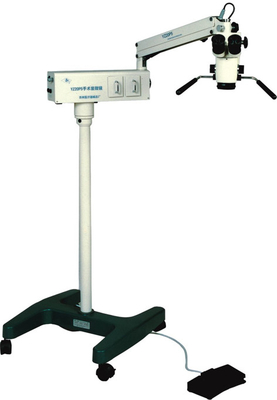

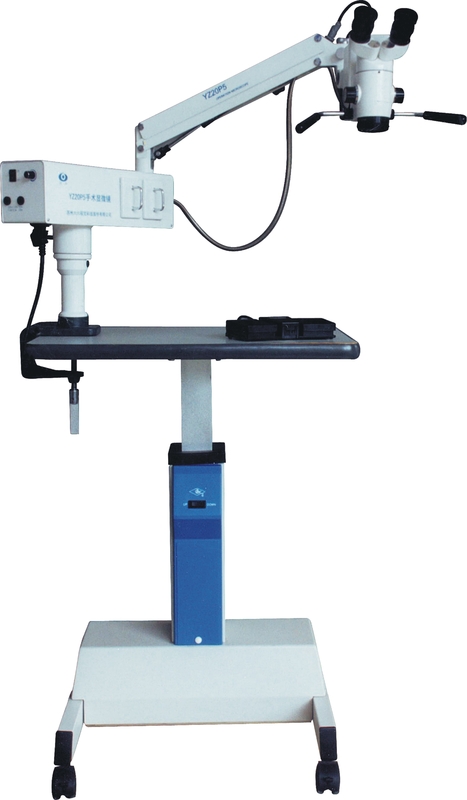

►Ophthalmic surgical microscope YZ20P5 is small and light, it’s convenient for doctors to take it anywhere in the operation room.The magnification is for 3 steps, 5 steps can also be made according to the customers' needs. The YZ20P5 can also match movable table instead of matching pose. It is convenient all the same. The aluminum alloy box make the microscope be more convenient.
► Specification
| Eyepiece Magnification | 12.5× |
| Focal Length of Objective Lens | F=200 |
| Working Distance | 190 mm |
| Magnification for Main Microscope | 5.3×, 8×, 16× |
| Diameter of Field | 37 mm, 25 mm, 16.7 mm |
| Diopter Adjustment | ±5D |
| Pupilary Distance | 50 mm ～ 70 mm |
| Maximum Resolution | 100 LP/mm |
| Light Source | 12V/100W halogen lamp for medical use |
| Illumination Type | 6° coaxial illumination of cold light source |
| Coaxial Illuminance | ≥30,000 Lx |
| Reaching Radius of Arm | 870 mm |
| Adjustable Vertical Range | 700 mm~1100 mm |
| Fine Focusing Range | 30 mm |
| Input Voltage | AC 220V/110V±10%, 50Hz/60Hz |
| Power Consumption | 120 VA |
| Fuse | AC 250V T4.0A, AC 125V T8.0A |
| Electrical Safety Standard | IEC 60601-1, Class I |
| Packing Volume | 0.2 m3,1 carton |
| Total Weight | 41 kg |
►Details
◆ Multi-layer coating technology is used on optical lenses to enhance transmission rate and prevent mildew.
◆ Foot controlled focus, three-step magnification change, good depth of field of view and good binocular fusion to meet the need of cataract surgery.
◆ Using apochromatic technology to make different wavelengths of the light focus near the focal point behind the lens, so as to make the operator's vision more clearly.
◆ The machine weights only 41Kg to be light and compact and is especially applicable for the mobile medical.
◆ Optional desktop components to make the machine more portable and can also be customized according to special requirements to meet the needs in ophthalmology, ENT and other surgery. ◆ Optional F250/F300/F400 lens.
►Customizable Accessories
| ◆ | Video devices(1/2'' or 1/4'' CCD, splitters and cable, and interfaces ,etc.) |
| ◆ | Straight binocular tube, universal connector( for ENT). |
| ◆ | 4 kinds of lenses(12.5× eyepiece): F250mm, F300mm, F350mm, F400mm. |
