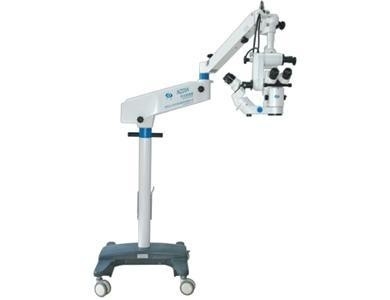

NZ20A Operation Microscope
Specifications:
Eyepiece Magnifications
12.5X/18B
Magnifications for Main Microscope
f300: 3X5X8X12X19X
f350: 2.5X4X6.5X10.5X16.5X
Magnifications for
Assiatant Microscope
f300: 5X7.5X11X
f350: 4X6X9.5X
Adjustable Range of Main&Assistant Eyepiece
45mm～ 80mm
Adjustable Diopter of Main&Assiatant Eyepiece
±7D
View Angle of Main Eyepiece
0°～60°
View Angle of Assistant Eyepiece
-30°～60°
Rotation Angle for Assiatant Eyepiece
±25°(can also do 180°rotation)
Fine Focusing Speed and Range
≤2mm/s50 mm
Adjustable Range of swing left and right
±60°swing left and right,forth and after operated
by motorized hand/foot switch
