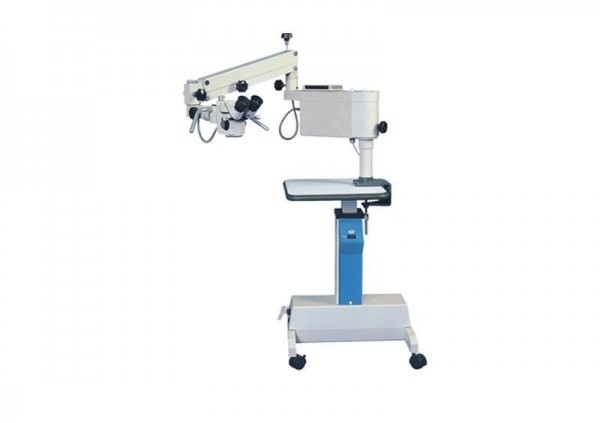

Lightweight Body Surgical Operating Microscope Equipped With Spring Balance System

Compact and lightweight body, with a high degree of flexibility.

3 step magnification change.

Equipped with spring balance system in the support arm to enable the microscope move up and down freely.

Multi-layer coating technology is used on all lenses to provide anti-mildew and anti-reflection to enhance the environment adaptation.

Can be equipped with different lenses and parts to apply in ENT, Surgery and Gynaecology Departments.

Eyepiece Magnification

12.5×

Focal Length of Objective Lens

f=200

Working Distance

190 mm

Magnification for Main Microscope

6×, 10×, 16×

Diameter of Field

37 mm, 25 mm, 16.7 mm

Diopter Adjustment

±5D

Pupilary Distance

50 mm70 mm

Maximum Resolution

100 LP/mm

Light Source

12V/100W halogen lamp for medical use

Illumination Type

6° coaxial illumination of cold light source

Coaxial Illuminance

≥10,000 Lx

Reaching Radius of Arm

860 mm

Adjustable Vertical Range

850 mm~1100 mm

Input Voltage

AC 220V/110V±10%, 50Hz/60Hz

Power Consumption

120 VA

Fuse

AC 250VT4.0A, AC 125V T8.0A

Electrical Safety Standard
