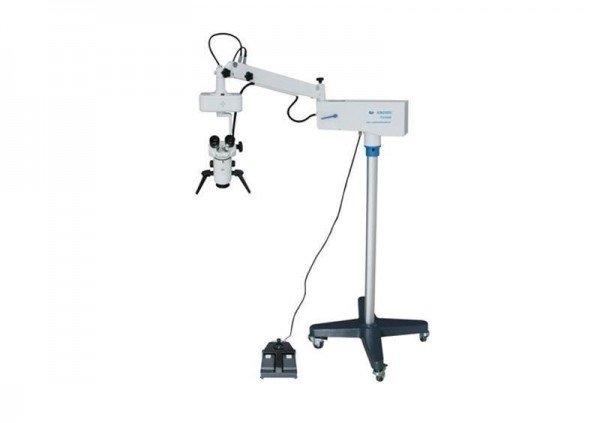

| Highlight: | Compact Structure Operating Microscope Ophthalmology,Portable Ophthalmology Surgical Microscope,ENT Portable Surgical Microscope |
||
|---|---|---|---|
Feature
| The product is designed with compact structure, complete functions and is able to use in small space. | |
| The magnification range is continuous variable from 4× to 24×, horizontal movement and fine focusing can be adjusted by foot control. | |
| Schott optic glasses are used to provide strong resolving power of optical system, clear image quality and uniform field of view. | |
| Applied to microsurgery and meticulous examinations of ophthalmology, ENT, etc. | |
| Optional 180° eyepiece tube. |
Specifications
|
Eyepiece Magnification |
12.5×, 16× |
|
Diopter Adjustment |
±6D |
|
View Angle of Eyepiece |
30°~90°optional 180° eyepiece tube |
|
Magnification for Main Microscope(Diameter of Field) |
4×~24× (41.5mm~7.5mm) |
|
Focal Length of Objective Lens |
f=200 mm, optional f=175/250/300 mm |
|
Pupilary Adjustment |
50 mm75 mm |
|
Maximum Resolution |
119 LP/mm |
|
Working Distance |
190 mm |
|
Light Source |
15V/150W, medical cold reflection halogen lamp |
|
Illumination Type |
6°+0° coaxial illumination |
|
Coaxial Illuminance |
≥40,000 Lx |
|
Filters |
Orange fliter( optional cobalt blue filter) |
|
Reaching Radius of Arm |
1020 mm |
|
Adjustable Vertical Range |
±250 mm |
|
Fine Focusing Speed and Range |
≤2 mm/s30 mm |
|
Speed for X/Y and Range |
≤2 mm/s50 mm×50 mm |
|
Input Voltage |
A |
