| Place of Origin: | China Jiangsu, Suzhou |
| Brand Name: | 66 VISION |
| Certification: | ISO13485, FDA,CE |
| Model Number: | YZ20T4 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton with epe （5 cartons） |
| Supply Ability: | 10 pcs per month |
| Microscope: | Ophthalmic Surgery Using | Eyepiece: | Double Binocular |
|---|---|---|---|
| Illumination: | 6°+0° Coaxial Illumination, 20° Oblique | Lens: | Multi-layer Coating Technology |
| Working: | X/Y Mobile Automatic Reset | Bulb: | 12V/100W, Medical Cold Reflection Halogen Lamp |
| High Light: | CCD Camera Ophthalmic Surgery Microscope,Double Binocular Ophthalmic Surgical Microscope,Multilayer Coating Surgical Operating Microscope |
||

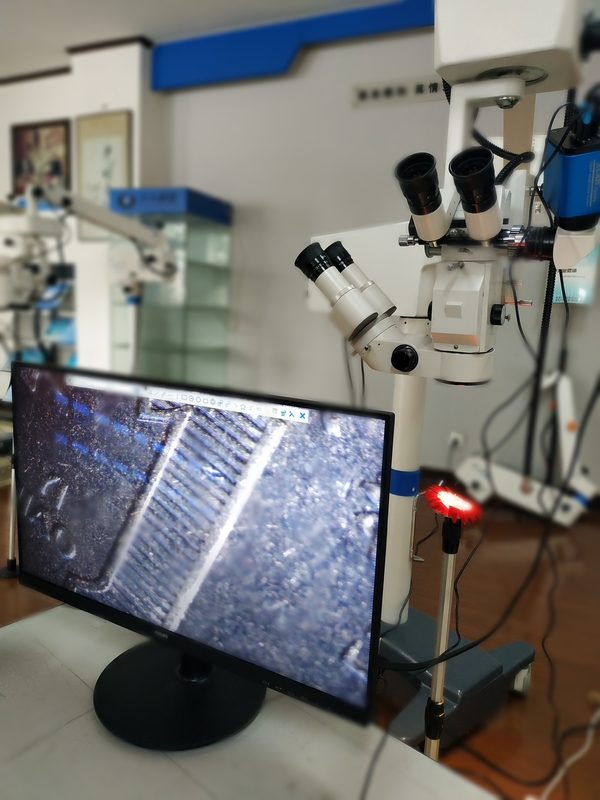

Ophthalmic Surgery Microscope Double Binocular With CCD Camera

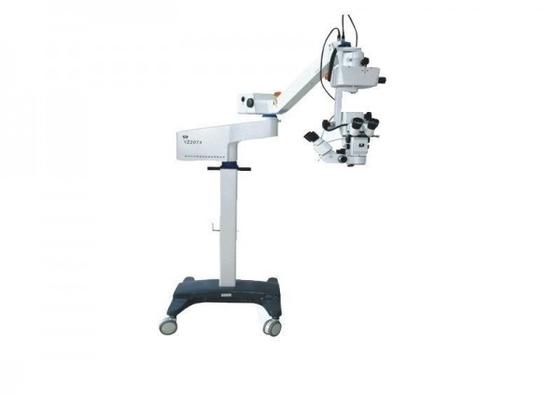

►The product YZ20T4 is a double binocular ophthalmic surgry microscope designed for two men. Assistant binocular can also be switched as opponent binocular. It is applicable in ophthalmic surgery and hand surgery, etc. HD Camera can match this microscope.
►Specifications
| Eyepiece Magnification | 12.5× |
| Diopter Adjustment | ±7D |
|
Magnification for Main Microscope |
f200: 4×, 6×, 10×, 16×, 25×
f250: 3.2×, 5×, 8×, 12.8×, 20×
f300: 2.7×, 4.2×, 6.7×, 11×, 17× |
|
Magnification for Assistant Microscope |
f200: 6×, 10×, 16×
f250: 5×, 8×, 12.8×
f300: 4.2×, 6.7×, 11× |
| Focal Length of Objective Lens | f=200 /250/300 mm |
| Pupilary Adjustment | 50 mm ～ 75 mm |
| Maximum Resolution | 112 LP/mm |
| Working Distance | 190 mm |
| Light Source | 12V/100W, medical cold reflection halogen lamp |
|
Illumination Type |
6°+0° coaxial illumination, 20° oblique illumination(can be used as silt illumination with slit width adjustable) |
| Coaxial Illuminance | ≥50,000 Lx |
| Oblique Illuminance | ≥45,000 Lx |
| Reaching Radius of Arm | 1040 mm |
| Adjustable Vertical Range | 850~1350 mm |
| Fine Focusing Speed and Range | ≤2 mm/s,≥50 mm |
| Speed for X/Y and Range | ≤2 mm/s,50 mm×50 mm |
| Input Voltage | AC 220V/110V±10%, 50Hz/60Hz |
| Power Consumption | 330 VA |
| Fuse | AC 250V T4.0A, AC 125V T8.0A |
| Electrical Safety Standard | IEC 60601-1, Class I |
| Packing Volume | 0.727 m3,5 cartons |
| Total Weight | 210 kg |
►Features
| ◆ |
Assistant microscope can be converted to opponent microscope to meet the operation needs in ophthalmology and other departments. |
| ◆ | Internal beam splitter can be connected with teaching tube and CCD system. |
| ◆ |
Equipped with three different objective lenses(f200/f250/f300) and applicable in ophthalmic surgery, orthopedic surgery and hand surgery. |
| ◆ |
Oblique illumination can be used as slit illumination with slit width adjustable and 360° rotatable. |
| ◆ |
Multi-layer coating technology is used on all lenses to prevent mildew and enhance lens transmittance. |
| ◆ | X/Y mobile automatic reset |
