Convenient Slit Lamp Microscope Image Collecting And Analysis System

Convenient Slit Lamp Microscope Image Collecting And Analysis System

  • Convenient Slit Lamp Microscope Image Collecting And Analysis System
Convenient Slit Lamp Microscope Image Collecting And Analysis System
Product Details:
Brand Name: 66 VISION
Payment & Shipping Terms:
Price: Negotiable
Contact Now
Detailed Product Description
Highlight:

ophthalmology slit lamp

,

video slit lamp

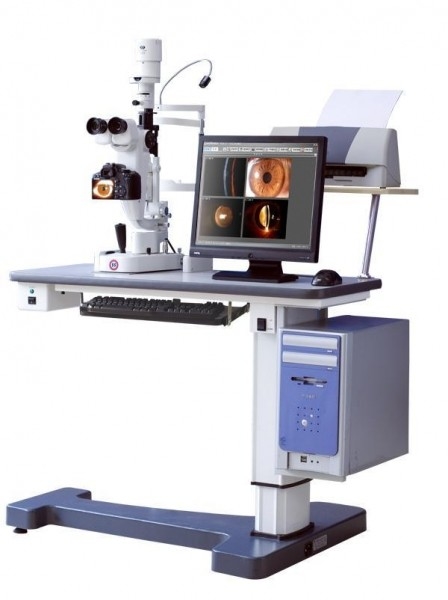

YZ5T Slit Lamp Image Collecting and Analysis System



Characteristics:

What doctors see from eyepieces is showed synchronously on camera display screen, which is very convenient for the doctors to capture the best and clearest pictures.

Photos taken by the 12.4 megapixel camera.

Background illumination specifically designed for darkroom environment.

Fine photos immediately taken by the button on joystick.

Used for establishing the full data of patients, processing images, measuring the length, area and so on.

Honored China Top Brand for its excellent optics.

Specifications:

Microscope Type

Galilean stereoscopic microscope

Magnification

Five-step drum magnifications

Eyepiece

12.5X

Magnification Ratio(Field of View)

6 x (33)10x(22.5)16x (14)25 (8.8)40(5.5)

Range of Pupil Distance

45 mm~75 mm

Adjustment of Diopter

-5D ~ +3D

Slit Width

0mm~14mm adjustable(slit is round when the slit width is 14mm)
