| Place of Origin: | China |
| Brand Name: | 66 VISION |
| Certification: | ISO13485, FDA,CE |
| Model Number: | YZ20P5 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton with epe |
| Microscope: | Binocular, Small, Light, Convenient | Illumination: | 6° Coaxial Illumination |
|---|---|---|---|
| Lens: | Multi-layer Coating Technology | Eyepiece Magnification: | 12.5× |
| Working Distance: | 190 Mm | Coaxial Illuminance: | ≥30,000 Lx |
| Reaching Radius Of Arm: | 870 Mm | Fine Focusing Range: | 30 Mm |
| High Light: | Coaxial Ophthalmic Operating Microscope,Binocular Ophthalmic Operating Microscope,Match Table Surgical Operating Microscope |
||

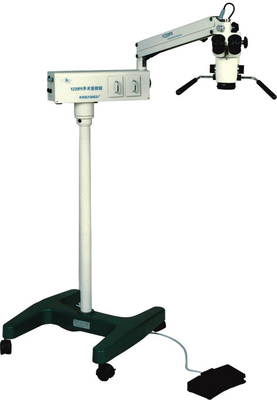

Ophthalmic Operation Microscope Binocular Coaxial Microscope Small light and convenient (can match table)
◆ Multi-layer coating technology is used on optical lenses to enhance transmission rate and prevent mildew.
◆ Foot controlled focus, three-step magnification change, good depth of field of view and good binocular fusion to meet the need of cataract surgery.
◆ Using apochromatic technology to make different wavelengths of the light focus near the focal point behind the lens, so as to make the operator's vision more clearly.
◆ The machine weights only 41Kg to be light and compact and is especially applicable for the mobile medical.

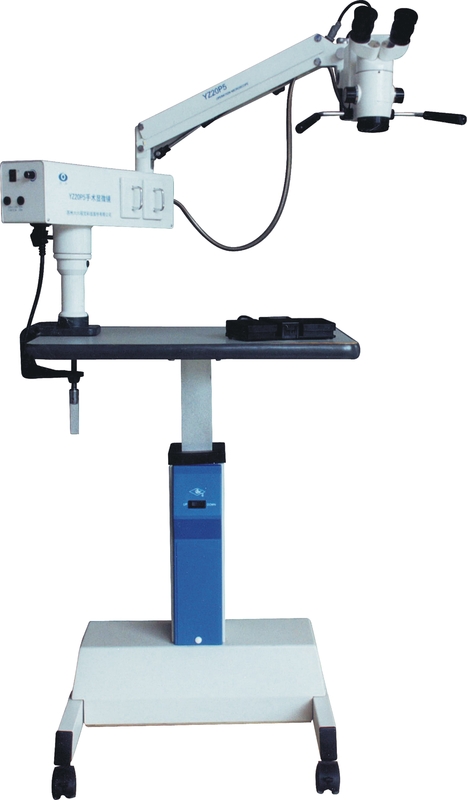

◆ Optional desktop components to make the machine more portable and can also be customized according to special requirements to meet the needs in ophthalmology, ENT and other surgery. ◆ Optional F250/F300/F400 lens.
| Eyepiece Magnification | 12.5× |
| Focal Length of Objective Lens | F=200 |
| Working Distance | 190 mm |
| Magnification for Main Microscope | 5.3×, 8×, 16× |
| Diameter of Field | 37 mm, 25 mm, 16.7 mm |
| Diopter Adjustment | ±5D |
| Pupilary Distance | 50 mm ～ 70 mm |
| Maximum Resolution | 100 LP/mm |
| Light Source | 12V/100W halogen lamp for medical use |
| Illumination Type | 6° coaxial illumination of cold light source |
| Coaxial Illuminance | ≥30,000 Lx |
| Reaching Radius of Arm | 870 mm |
| Adjustable Vertical Range | 700 mm~1100 mm |
| Fine Focusing Range | 30 mm |
| Input Voltage | AC 220V/110V±10%, 50Hz/60Hz |
| Power Consumption | 120 VA |
| Fuse | AC 250V T4.0A, AC 125V T8.0A |
| Electrical Safety Standard | IEC 60601-1, Class I |
| Packing Volume | 0.2 m3,1 carton |
| Total Weight | 41 kg |
◆Customizable Accessories
| ◆ | Video devices(1/2'' or 1/4'' CCD, splitters and cable, and interfaces ,etc.) |
| ◆ | Straight binocular tube, universal connector( for ENT). |
| ◆ | 4 kinds of lenses(12.5× eyepiece): F250mm, F300mm, F350mm, F400mm. |
Contact Person: sales
